Application in the area to avoid electrostatic discharge: must install the human anti-static shoes qualified inspection device to check the entry and exit personnel.
Product Introduction

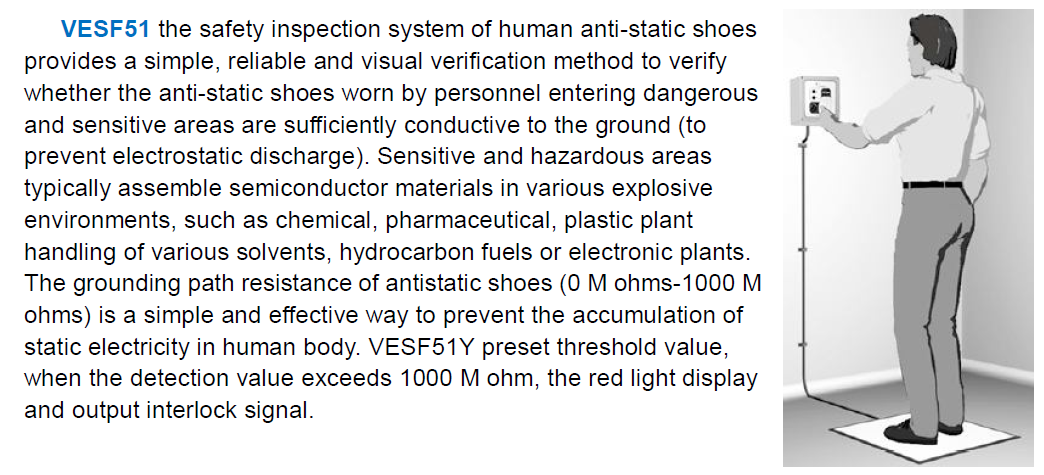

displays VESF51 the human anti-static shoe safety inspection system are generally installed to the height position of the human shoulder in non-hazardous and non-sensitive areas, and are generally the entrance to dangerous or sensitive areas. The bottom is a bare pad (tread), and the pad is linked to the display unit cable. When a person stands on the pad and grips the handle of the display, the internal check circuit starts, and the display unit shows the resistance value between the hands and the stepping pad. Red indicator lights up until the grounding resistance falls at 0 M-1000MΩ and becomes green.
Technical parameters
Electricity: 240V, 50/60HZ
Voltage tested: 12 V
Resistance range: MΩ-1000MΩ0
Order No.： VESF51/A VESF51B
